Description

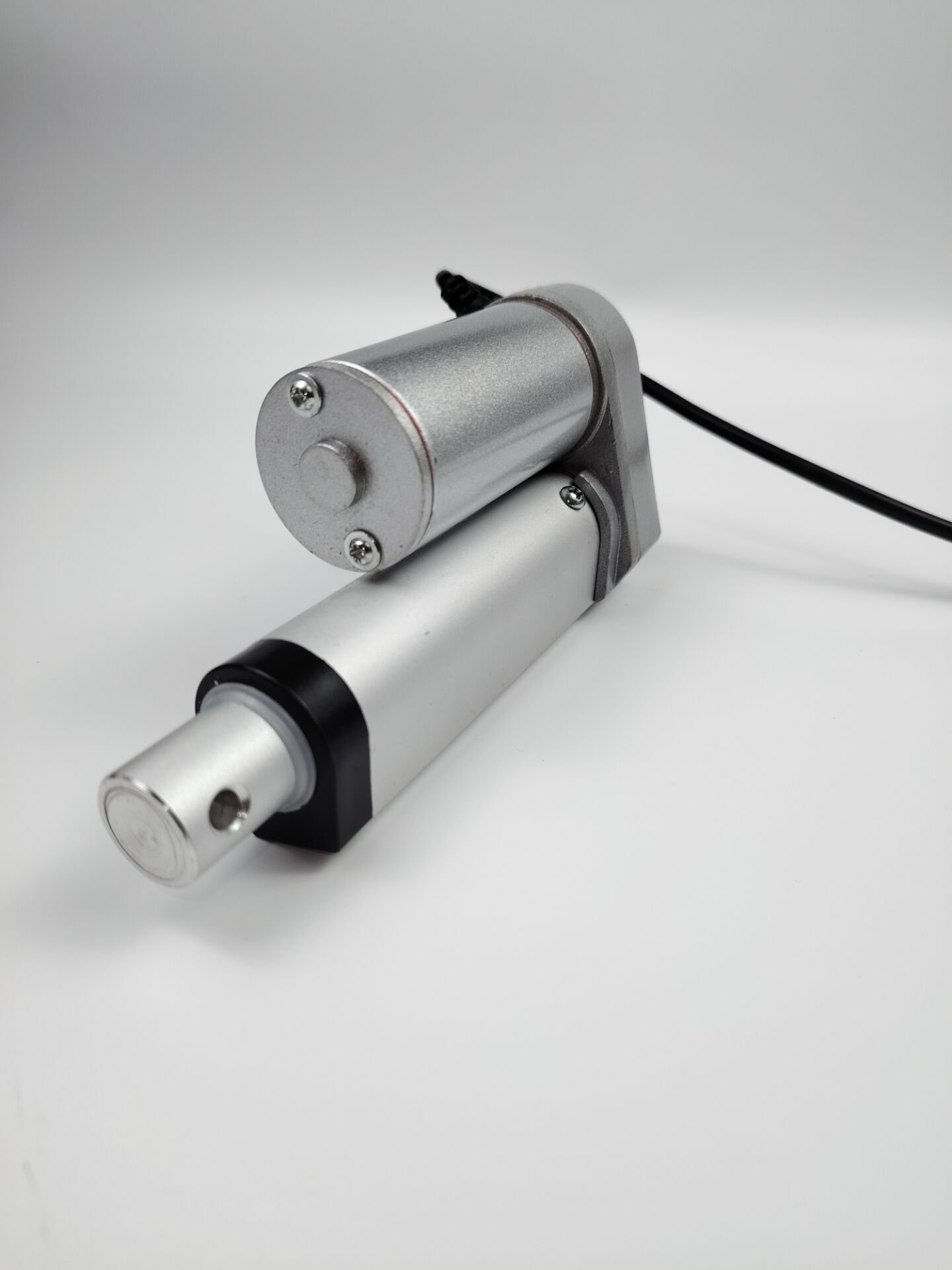

Type JS – TGZ – U1
Application: ship, automobile, industrial machinery, automobile, window, cleaning, other
1) Voltage: 12VDC 24VDC permanent magnet
2) Motor power: 30W
3) Standard stroke: 50.100.150.200.250.300 350.400.450.500
4) Standard installation size: stroke + 105mm
5) Load capacity: 1000N
6) No-load speed: 6mm / s
7) Work efficiency: 10%
8) Ambient temperature: -5 C +50 C°
9) Protection grade: IP54
10) Built-in limit switch can not be adjusted after delivery
11) Low noise design, dB < 53
12) There is nylon gear structure inside.
Precautions:
The inner nylon gear should not be overloaded
Method of use
: the push rod can not overload the use of overload will affect the service life of the motor should be selected higher than the thrust itself
: DC push rod motor with positive and negative pole conversion + stretch – retract
: The putter moves in a straight line
: The upper and lower holes of the push rod are for installation
