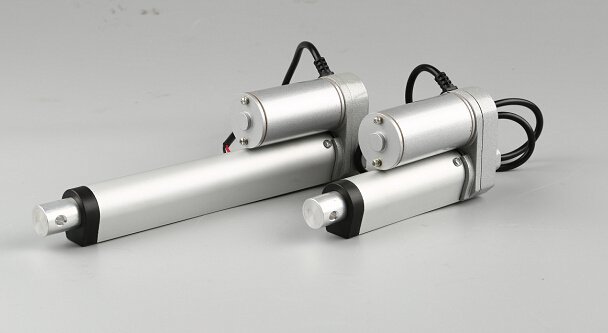

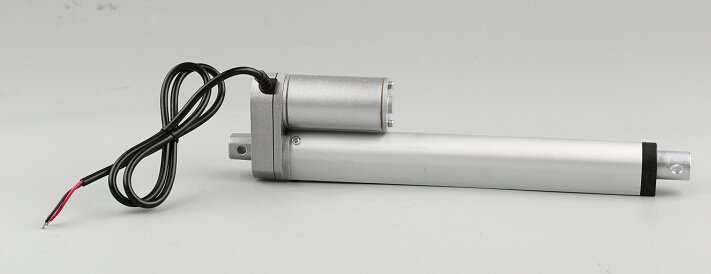

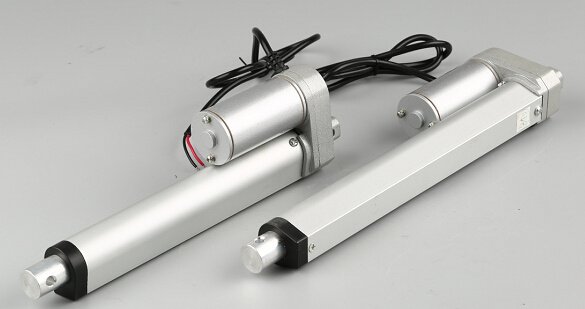

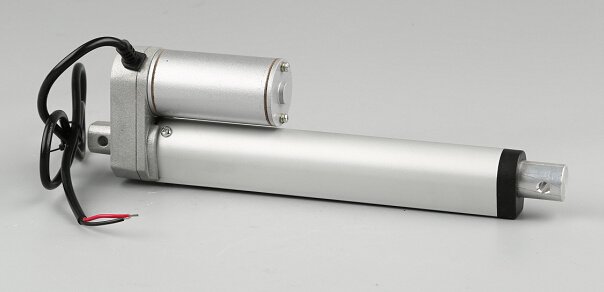

12VDCLouverActuator1000NSpeedJS-TGZ-U1stroke350MMDC Linear Actuator

Model ‘JS-TGZ-U1’ Application: ship, car, industrial machinery, car, window, cleaning, other 1) Voltage: 12VDC 24VDC Permanent Magnet 2) Motor power: 30W 3) Standard stroke: 50.100.150.200.250.300 350.400.450.500.550.600.650.700.750. 4) Standard installation size: Stroke   105mm 5) PS: Special instructions Stroke can be designed according to your requirements 6) Load capacity: 750N 7) No-load speed: 10 / s 8) Working efficiency: 10% 9) Ambient temperature: -5 C  50 C° 10) Protection grade: IP45 11) Built-in limit switch, not adjustable after leaving the factory 12) Low noise design, DB＜53
